Endpoint: https://studiobitonti.appspot.com/convexHull

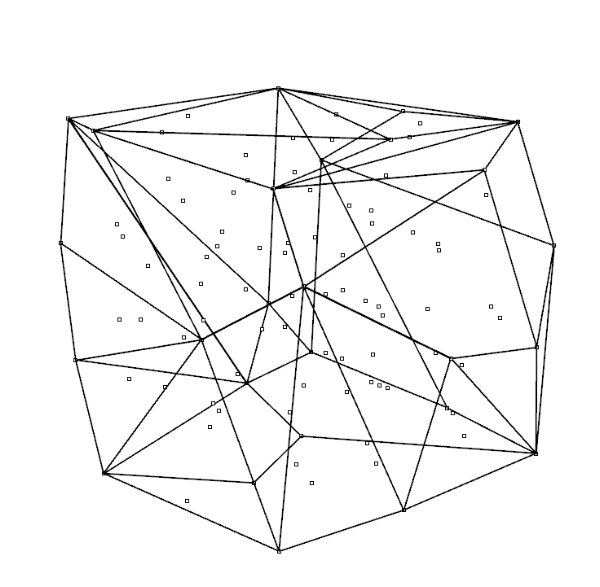

The convex hull function creates a boundary around the outermost laying points. It is used to get a sense of size of the point cloud field.

Input:

Points: Input the list list of 2d , 3d or high-dimensional points locations to be calculated..
They should be in a .json format. The Structure would be as follows:

For 2D points:

"points":[[x1,y1],[x2,y2],[x3,y3],...]

For 3D Points:

"points":[[x1,y1,z1],[x2,y2,z2],[x3,y3,z3],...]

T: [YOUR SECRET TOKEN]

Output:

The result is a string output of points. It is as follows:

{"convexHull":[[u1,v1,w1],[u2,v2,w2],[u3,v3,w3].....]}

Example:

request input:

{
   "points":[[-28.918442,8.70964,1.0],[-43.438754,-2.261607,0.0],[-42.419287,10.503024,2.0],[-33.557706,-1.216382,5.0],[-36.607761,6.483151,0.0],[-44.044205,4.3235,0.0]]

}


Full request URL:

https://studiobitonti.appspot.com/convexHull?t=[YOUR SECRET TOKEN]


Response:

    {"convexHull":[[2,3,0],[1,3,0],[1,2,5],[1,2,3],[4,1,5],[4,1,0],[4,2,5],[4,2,0]]}
